Assets / Dependencies

Dependencies may be established between assets. Dependencies are used to propagate value (that is, security requirements) from valuable assets ‘above’ onto equipment assets ‘below’.

You may rate the system by domains or asset by asset. You select in Options / Valuation

If you are valuating by domains, you may skip dependencies, and jump directly into Valuation by domains

If you are valuating asset by asset, you should establish the dependencies, and then jump into Valuation by assets

Quick start

If you have identified facilities (installations) …

associate each equipment to the facility where it is located

If you have identified services and equipment …

associate each service to the equipment it uses: software, hardware, communications, media, …

If you have identified people …

associate each person to the services or equipment they may cause harm (either accidentally or deliberately)

Repeat until every asset under the business layer is used for something.

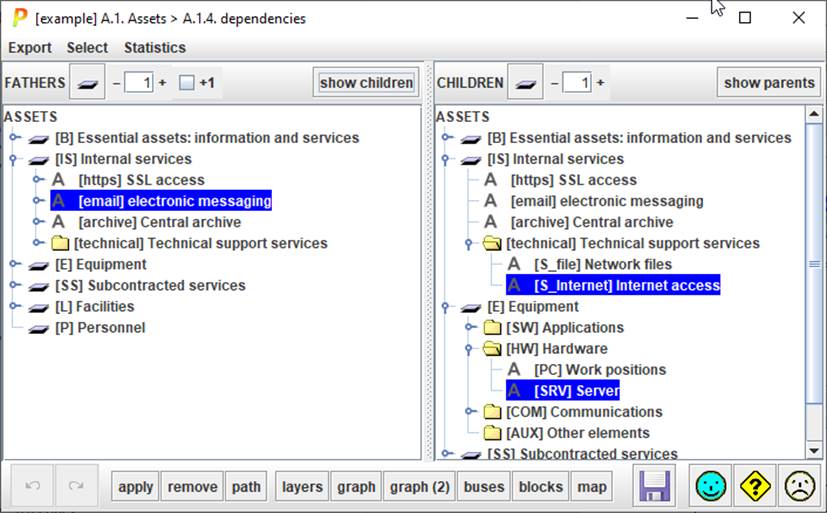

This screen is used to establish the dependencies between assets. The left panel shows the "father" assets (the asset above in the dependency graph), while the right panel shows the "children" assets (the assets below in the dependency graph).

Top menu EXPORT

… to XML	eXtensible Markup Language
… to GraphML	export data to GraphML format
… to CSV	Comma Separated Values; export for excel

Top menu SELECT

no father	selects assets without dependencies above
no son	selects assets without dependencies below
dependency loops	selects assets trapped in a loop

Top menu STATISTICS

dependencies

summary table

Top left toolbar FATHERS

	Click to collapse left assets tree.
	Control the level of expansion of the left tree. If [+1] is selected, the descendent asset is shown as well.
[+1]	Controls whether assets (left) tree includes descendants or only assets
SHOW CHILDREN	Select an asset on the left panel. Click SHOW CHILDREN for PILAR to select the direct descendants, and mark the indirect descendants, on the right tree.

Top right toolbar CHILDREN

	Click to collapse right assets tree.
	Control the level of expansion of the right tree.
SHOW PARENTS	Select an asset on the right panel. Click SHOW PARENTS for PILAR to select the direct ascendants, and mark the indirect ascendants, on the left tree.

Bottom toolbar

	undo. The last APPLY or REMOVE done
	redo. The last APPLY or REMOVE undone.
APPLY	Select one or more assets on the left. Select one or more assets on the right. Click APPLY to make each asset on the left depend on every asset on the right.
REMOVE	Select one or more assets on the left. Select one or more assets on the right. Click REMOVE to make each asset on the left independent from every asset on the right. Or select a dependency on the left and click REMOVE to remove it.
PATH	Select one asset on the left, and one asset on the right. Click PATH to open a window with the route(s) from the left asset (green) down to the right asset (red).
LAYERS	Opens a new window with as many boxes as layers, showing dependencies. See “Assets / Dependencies / Layers”.
GRAPH	Opens a new window with as many boxes as assets, showing dependencies. See “Assets / Dependencies / Graph”.
GRAPH (2)	As GRAPH but uses an alternative algorithm for default placing of boxes. See “Assets / Dependencies / Graph”.
BUSES	Opens a new window with as many boxes as assets, showing dependencies. See “Assets / Dependencies / Buses”.
BLOCKS	Opens a new window with as many boxes as assets, showing dependencies. See “Assets / Dependencies / Blocks”.
MAP	Opens a new window with as many boxes as assets, showing dependencies. See “Assets / Dependencies / Map”.
	Save project

Several screen present a LIVE checkbox on top. If selected, the diagram follows the assets selected on the main screen. Otherwise, the diagram is frozen.

To establish a dependency

select F in the left panel (one or more assets)
select S in the right panel (one or more assets)
click on APPLY

If F or S, or both of then, are groups, the dependency will be established between the corresponding sons. So, when a group depends on another group, every asset from the father group depends on each asset of the son group.

To remove a dependency

select F in the left panel (one or more assets)
select S in the right panel (one or more assets)
click on REMOVE

select S in the left panel (one or more assets)
click on REMOVE

To find out the sons of F

select F in the left panel (one or more assets)
click on SONS

To find out the fathers of S

select S in the right panel (one or more assets)
click on FATHERS

To set a degree of dependency

By default, dependencies are 100% on every dimension.

To set a degree between 0% and 100%:

expand dependencies under an asset
select the son asset
click on the right button of the mouse Dependencies per dimension of security

To discover the dependency route from one asset to another

select the father on the left panel
select the son on the right panel
click on PATH
