The graph shows the relationships between layers. A layer L1 depends on a layer L2 if there is at least one asset in L1 that depends on at least one asset in L2.

If the model is "clean"

  • layers above only depend on layers below
  • layers below only depend on layer above
  • there may be internal dependencies within layers


That is not mandatory; but projects that do not adhere to the rule are harder to understand and to explain.

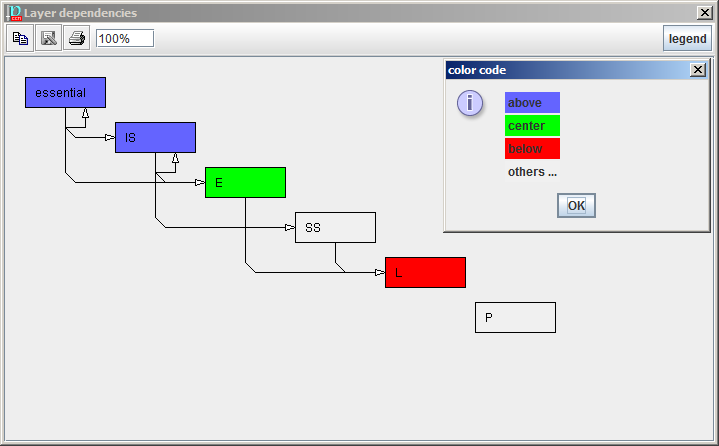

When you click on one layer, the graph gets colour:


deep blue

directly related layers above

green

the reference layer

bright red

directly related layers below

grey

unrelated



copy

Copies the image to the note pad to paste it somewhere else.


save

to store the picture as an image file. The available image formats depend on the hosting machine; some formats are quite widespread:

jpg, jpeg, png


print

to send the picture to a printer

scale

to enlarge / decrease the image


legend

show the colour codes


These graphs provide a MEMORY button to memorize layouts with a name


A screenshot of a computer??Description automatically generated

new label

Defines a new label with a name

rename

Renames the label

remove

Remove the label

load

The current diagram is recorded for the label

select

Recovers the diagram loaded onto the label
