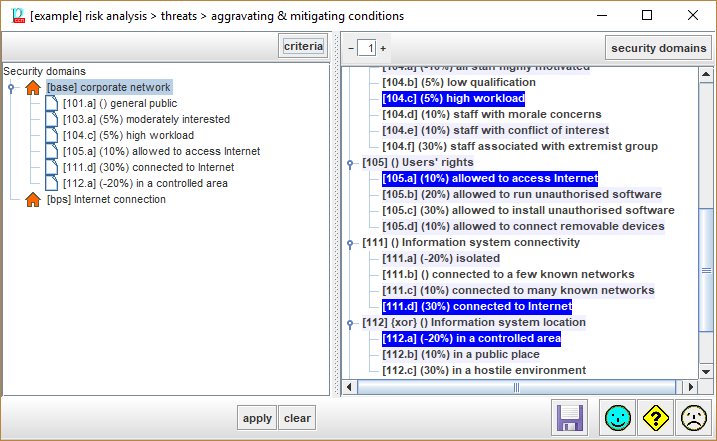

This screen qualifies domains with a number of characteristics. The effect is to modify the standard values assigned from threat profile files.


If you modify the associations in this window, please, re-apply the library, or another TSV file (see “[[ra_tv]]”. TSV is applied automatically if threats are set to automatic (see [[Options / Threats]]).



Top toolbars


criteria

Select one security domain in the left panel.

Click CRITERIA and PILAR will select in the right panel the criteria applying to the selected domain.

Control the level of expansion of the criteria tree.

security domains

Select one criterion in the left panel.

Click DOMAINS and PILAR will select the security domains in the right panel where the criterion applies.


Bottom toolbar


apply

Select one or more security domains in the left panel.

Select one or more criteria in the right panel.

Click APPLY to associate.

clear

Select one or more security domains in the left panel.

Select one or more criteria in the right panel.

Click CLEAR to dissociate.


Saves current project either in a file, or in database (according to its source).


To associate a criterion to a domain

  • select the domain (left panel)
  • select the criterion (right panel)
  • click APPLY


To remove a criterion association

  • select the criterion (on the left panel)
  • click CLEAR


To discover the criteria associated to a domain

  • select the domain (on the left panel)
  • click criteria (left panel, top)


To discover the domains subject to a vulnerability

  • select the criterion (on the right panel)
  • click DOMAINS (right panel, top)
