html

Values from the table are exported to an HTML file

csv

Values from the table are exported to a CSV file

xml

Values from the table are exported to an XML file

db

Values from the table are exported to an external database (if enabled by license)

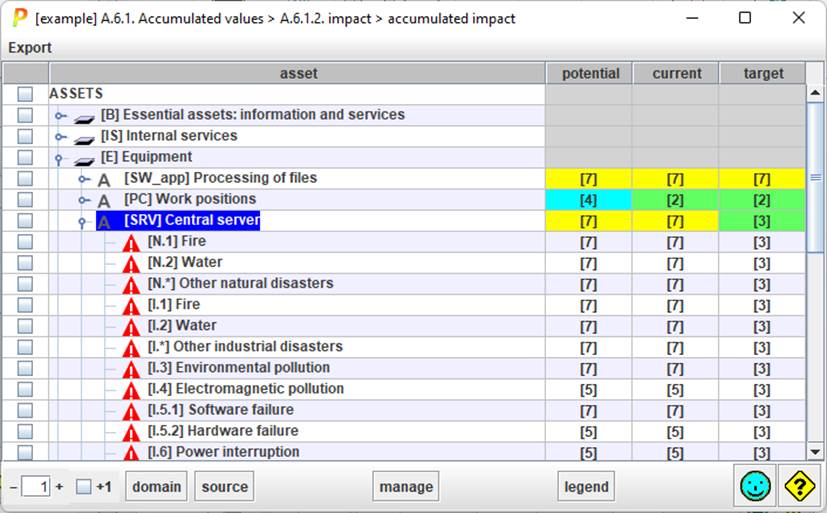

1

selection

Selects some assets to manage.

Click on column header to clear the current selection.

2

assets

Assets and threats tree.

Double click to expand / compress.

3 …

impact

The impact of the threat on the asset, per phase.

Controls the unfolding of the assets tree.

+1

Modifies the unfolding.

If selected, PILAR presents the threats.

security domain

Select a security domain.

PILAR will select the assets in that domain.

source

Select one or more information sources.

PILAR will select the assets associated to those sources.

manage

For the rows selected, PILAR collects the risks, and jumps into safeguards valuation, taking into account ONLY those risks.
