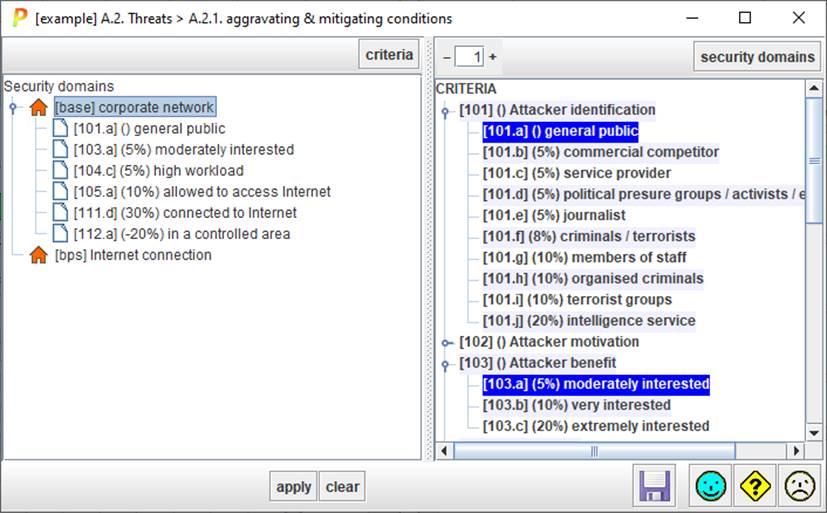

This screen qualifies domains with a few characteristics. The effect is to modify the standard values assigned from threat profile files.
If you modify the associations in this window, please, re-apply the library, or another TSV file (see “Valuation of threats”. TSV is applied automatically if threats are set to automatic (see Options / Threats).
Top toolbars
|
criteria |
Select one security domain in the left panel ([4]). Click CRITERIA and PILAR will select in the right panel ([5]) the criteria applying to the selected domain. |
|
|
Control the level of expansion of the criteria tree. |
|
security domains |
Select one criterion in the left panel ([5]). Click DOMAINS and PILAR will select the security domains in the right panel ([4]) where the criterion applies. |
Bottom toolbar
|
apply |
Select one or more security domains in the left panel ([4]). Select one or more criteria in the right panel ([5]). Click APPLY to associate. |
|
clear |
Select one or more security domains in the left panel ([4]). Select one or more criteria in the right panel ([5]). Click CLEAR to dissociate. |
|
|
Saves current project either in a file, or in database (according to its source). |
To associate a criterion to a domain
- select the domain (left panel)
- select the criterion (right panel)
- click APPLY
To remove a criterion association
- select the criterion (on the left panel)
- click CLEAR
To discover the criteria associated to a
domain
- select the domain (on the left panel)
- click criteria (left panel, top)
To discover the domains subject to a
vulnerability
- select the criterion (on the right panel)
- click DOMAINS (right panel, top)
