See

https://www.ar-tools.com/doc/

for information on CVE, and how PILAR uses them.

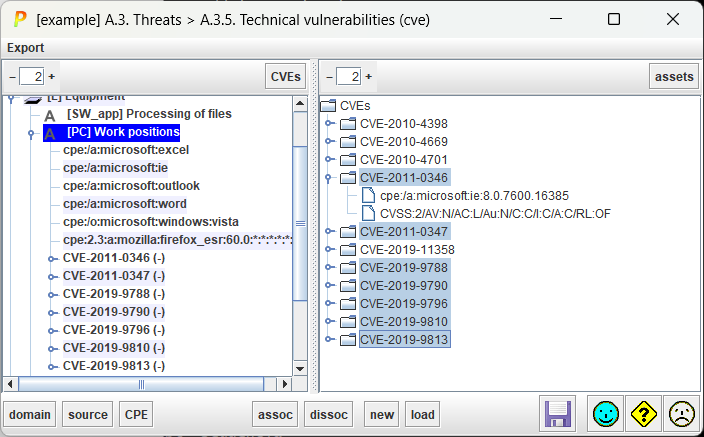

A screenshot of a computer??Description automatically generated


Left panel displays assets, and for each asset the CPEs and CVEs associated to it.

Right panel displays CVEs, and for each CVE, the CPEs and CVSS associated to it.

You may select assets by security domain.

You may select assets by information source.

You may select assets and CVEs by CPEs associated to them.


ASSOC

You may associate selected assets on the left panel to the selected CVEs on the right panel.


DISSOC

You may dissociate selected assets on the left panel to the selected CVEs on the right panel. You may also select a CVE on the left panel and dissociate it from its enclosing asset either by means of the DISSOCIATE button or DELETE button.


NEW

You may create new CVEs.


LOAD

You may load CVE info from external files using NVD format.


CVE feed

CVEs may found at NIST National Vulnerability Database

https://nvd.nist.gov/vuln


There you may list CVE details, and download data using JSON format; for example:

https://www.cve.org/CVERecord?id=CVE-2025-21325



CVE association to phases

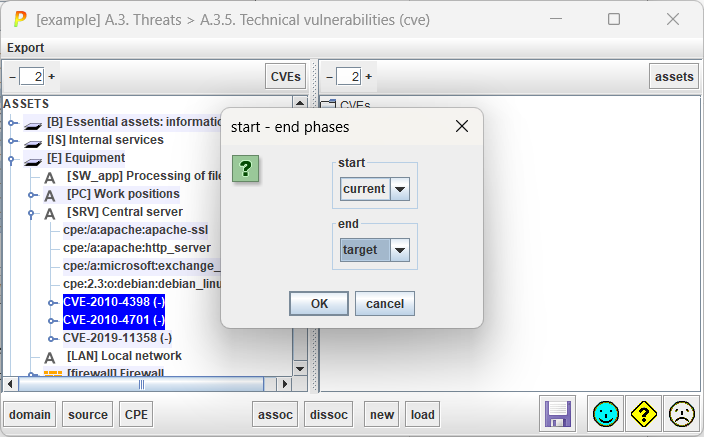

A CVE may be marked as active between two phases. Select one or more CVEs on left pannel (CVEs for an asset), and right click

A screenshot of a computer program??Description automatically generated

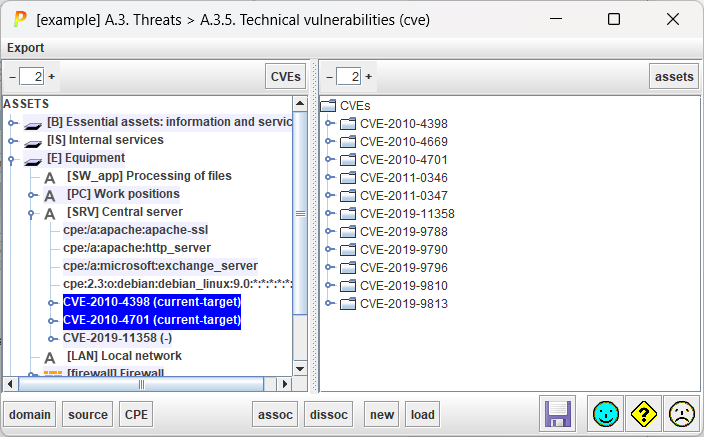

When start and end dates are marked, the risk associated with the ASSET-CVE only applies between the stated phases.


Edit CVE

You may edit a CVE by clicking on it on the right panel (and selecting the desired CVSS version) or by clicking on the CVSS vector on the right panel.

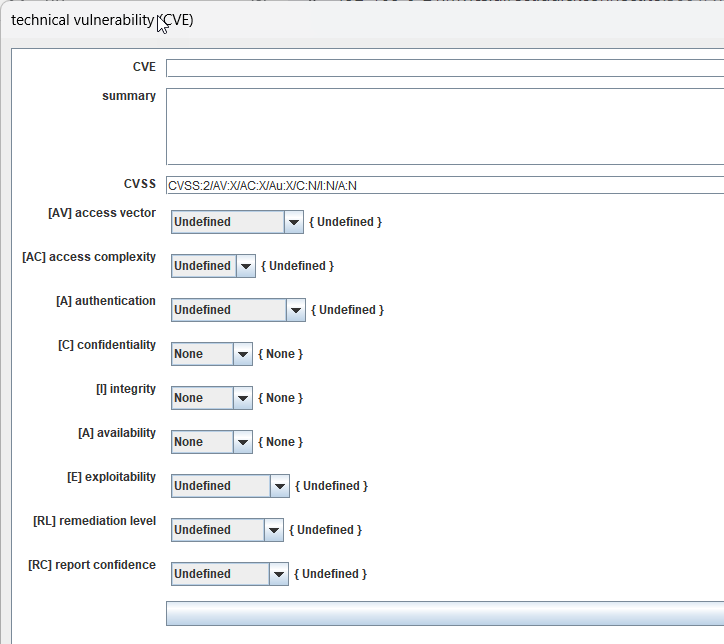

Edit CVE & CVSS:2

A screenshot of a computer??Description automatically generated

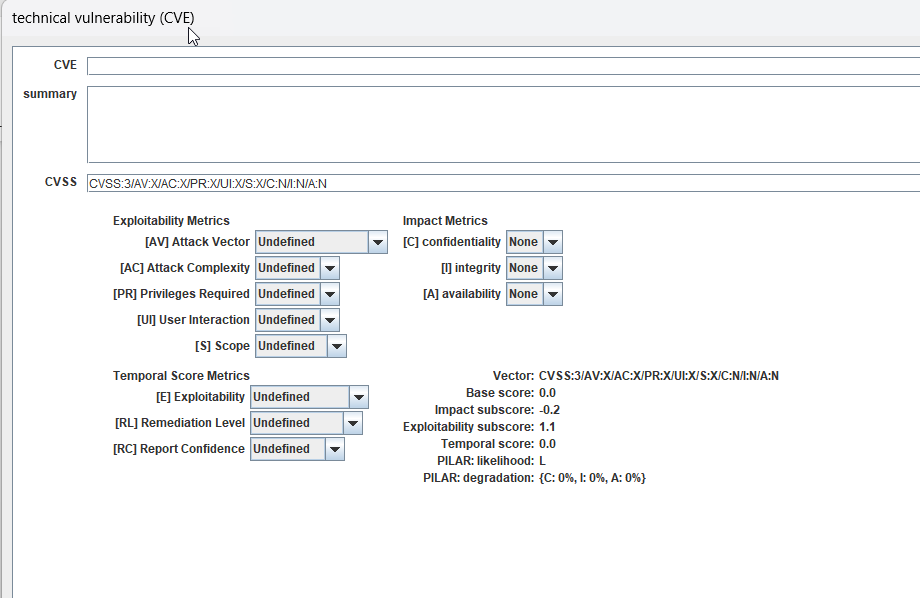

Edit CVE & CVSS:3

A screenshot of a computer??Description automatically generated

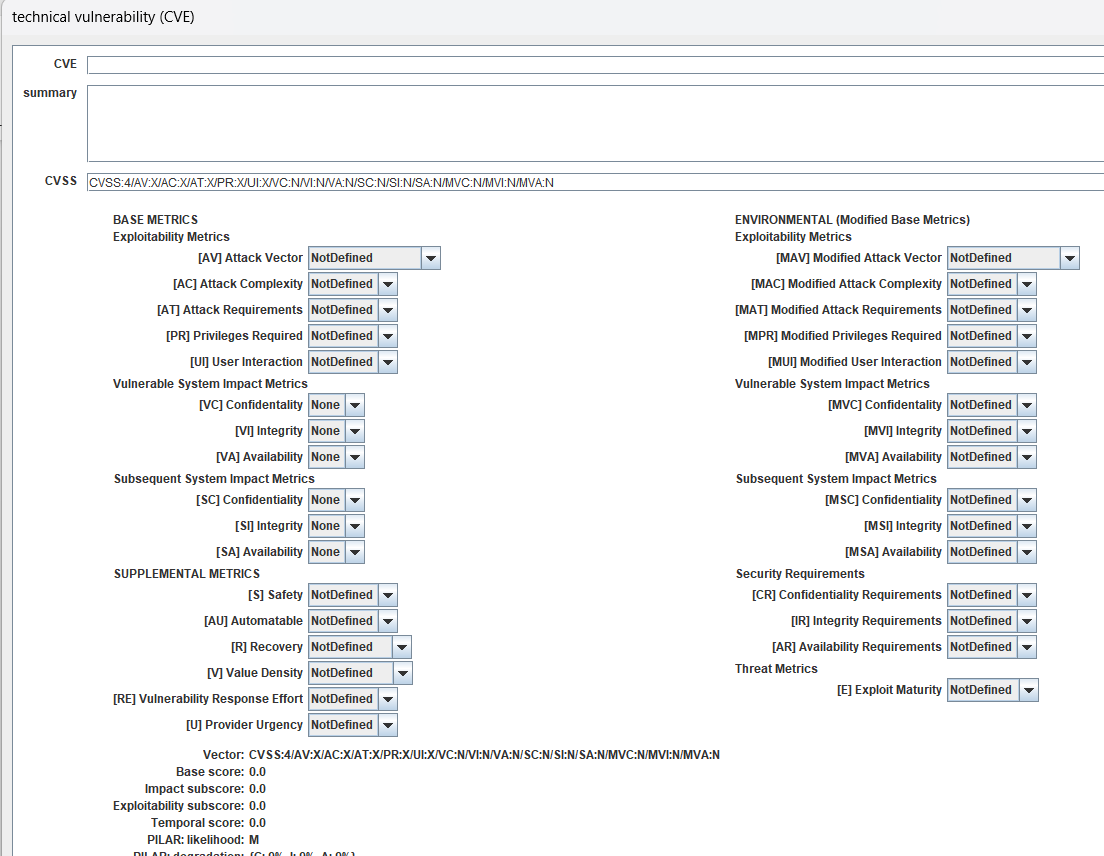

Edit CVE & CVSS:4 (under development)

A screenshot of a computer??Description automatically generated
