You may classify assets into security domains. Each domain has a separate evaluation of safeguards. When different assets are subject to different safeguards, or safeguard maturities, domains permit to organise the assets into groups.

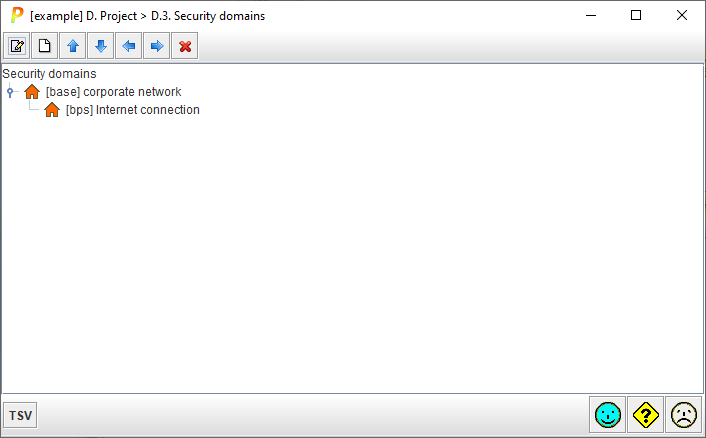

This screen establishes and manages a hierarchy of domains. There is always a BASE domain you may not remove. Assets that are not assigned to any domain remain in the BASE domain.



Top toolbar:



select a domain and click to edit


select a domain and click to add another domain within it


select a domain and click to move it up

also: SHIFT + UP_ARROW


select a domain and click to move it down

also: SHIFT + DOWN_ARROW


select a domain and click to move it left

also: SHIFT + LEFT_ARROW


select a domain and click to move it right

also: SHIFT + RIGHT_ARROW


select a domain and click to delete it

also: DELETE


On the panel with the hierarchy of domains

  • select and double click to edit
  • click on the handle to expand / collapse the tree



Click bottom TSV to assign a threats profile to each security domain.

  • See “[[TSV]]”.
