html

Values from the table are exported to an HTML file

csv

Values from the table are exported to a CSV file

xml

Values from the table are exported to an XML file

db

Values from the table are exported to an external database (if enabled by license)

1

selection

Selects some assets to manage.

Click on column header to clear the current selection.

2

assets

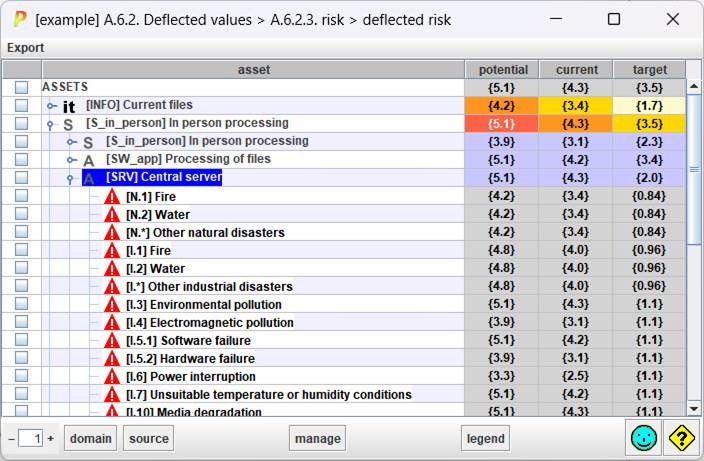

Assets and threats tree. It includes the assets above, with their own value, and the assets below, with accumulated value. Threads happen on assets below; then the consequences are deflected onto the asset above.

Double click to expand / compress.

3 …

risk

The risk of the threat on the asset.

Controls the unfolding of the assets tree.

security domain

Select a security domain.

PILAR will select the assets in that domain.

source

Select one or more information sources.

PILAR will select the assets associated to those sources.

manage

For the rows selected, PILAR collects the risks, and jumps into safeguards valuation, taking into account ONLY those risks.
