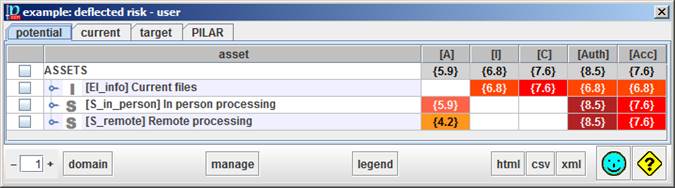

PILAR presents the indirect risk on essential assets with an explicit value:

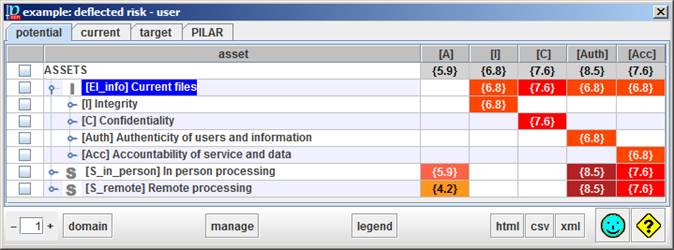

You may expand the tree to split each dimension apart

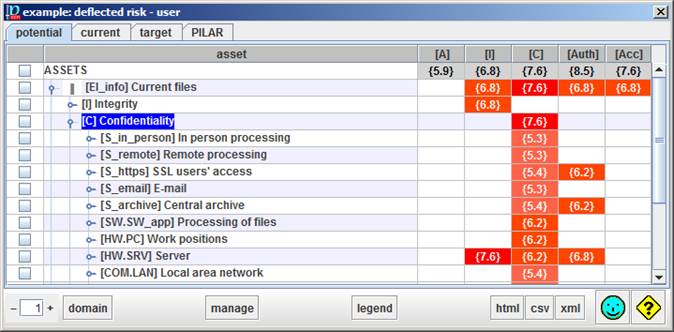

You may further expand the tree to inspect how each dimension is affected on assets below:
And so, on down to the level of single threats.
Phase tabs
One tab per project phase. Click to switch.
Top menu: EXPORT
|
html |
export selected lines
to HTML for web browsers |
|
csv |
export selected lines to CSV, for excel |
|
xml |
export selected lines to XML |
|
db |
export selected
lines to a DBMX only if SQL module is
enabled |
Columns
|
selection |
Click on checkboxes to check / uncheck. SHIFT-click to check a range. Click on column header to clear current selection. Selects rows to manage (see below) |
|
assets |
Assets tree. |
|
dimensions |
One column per security dimension. Click on header to switch to alternate view. Risk value. Risk is evaluated on threats and summarised for assets. |
Bottom toolbar
|
|
Spinner to control the expansion of the assets tree. |
|
manage |
For the rows selected in column 1, PILAR collects the risks, and jumps to the safeguard valuation screen, only taking into account the selected risks. |
|
legend |
